- Maintenance free, never needs adjustment
- Unmatched durability provides long life
- High energy absorption in a lightweight spring package
- Wide operating temperature range (–40° C to + 50° C)
- Available with ultraviolet protection
- Designed to comply with EN Specification EN-15551
and EN-15566 - Can be premounted
Passenger
Miner TecsPak Passenger Springs provide an excellent balance of a high degree of protection for passenger wagons while permitting smooth operation for curving. The unsurpassed durability and dependable quality will reduce maintenance costs for an extended life of your equipment.
If you don’t see a buffer spring package that fits your needs, please contact us and let us know your specific parameters.
P-110
1st Closure |
3rd Closure |
|
| Preforce | 19 kN | 13 kN |
| Capacity (We) | 18.3 kJ | 14.5 kJ |
| Absorption (Wa/We) | .52 | .43 |

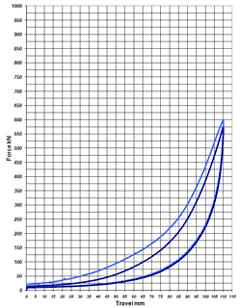

P-110 Performance Curve
(72 Hours After Installation)
| - 8 Pads, 7 Plates | |
| - Installed Height: | 334mm |
| - Test Speed: | 25mm/min |
S-110
1st Closure |
3rd Closure |
|
| Preforce | 19 kN | 12 kN |
| Capacity (We) | 17.7 kJ | 13.9 kJ |
| Absorption (Wa/We) | .52 | .42 |

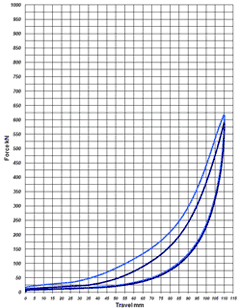

S-110 Performance Curve
(72 Hours After Installation)
| - 7 Pads, 6 Plates | |
| - Installed Height: | 305mm |
| - Test Speed: | 25mm/min |
