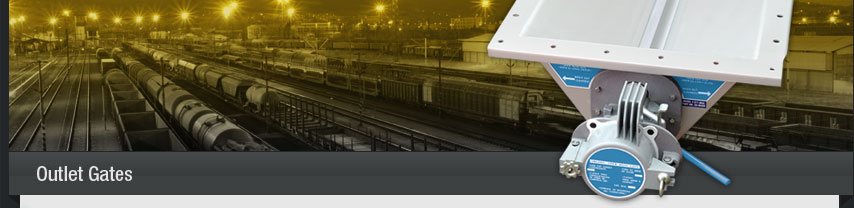

Outlet Gates

Pneumatic Gate for Plastics - Double Groove

The Miner line of plastic pellet gates, one of the most widely specified gates by plastic pellet shippers, boasts watertight, obstruction free and simple to operate designs, are built with all FDA approved materials. The seals keep flood waters out protecting the integrity of the commodity. The valve and interior are free of obstructions that can collect product residue and make complete cleaning difficult. Gates are easy to open because the rotary valve throttles back the product flow, thus requiring lower opening forces. With a simple 90-degree rotation of the handle, the valve can be opened to a full length "clean" and "wash out" position.

Simple. Reliable. Proven.


Features

  • Simple to Operate
  • Reliable Performance
  • Smooth unobstructed product flow
  • Enables total clean-out, eliminating cross contamination
  • Watertight construction
  • Easy to maintain

Specifications

  • 32 or 38 bolt-hole
  • Low profile available
  • Special bolt patterns available to accommodate older car designs
  • 173 – 192 lbs

Options

  • 32 or 38 bolt-hole
  • Low profile available
  • Special bolt patterns available to accommodate older car designs

Simple to Operate

  • Eliminates confusion during operation
  • Easy to adjust and secure to reduce loss and damage

Reliable Performance

  • Smooth unobstructed product flow
  • Watertight seals and gaskets designed for zero leakage
  • Smooth surfaces for total clean-out, eliminating cross contamination

Easy to Maintain

  • Easier to wash out, with no worries about obstructions
  • Lowest number of commonly replaced parts

Proven Design

  • 3-inch one piece valve for fast product flow and easy sampling
  • Watertight construction - 3 level protection
    • A spring-energized Teflon seal for a tight fit
    • High-density closed foam to retain product integrity
    • Unique EPDM gasket seal
  • Rugged constriction to resist damage

Not sure what you need? Call us 1-630-232-3000
Sizes and commodity are representative only.
Please contact us to determine the best fit for your application.
